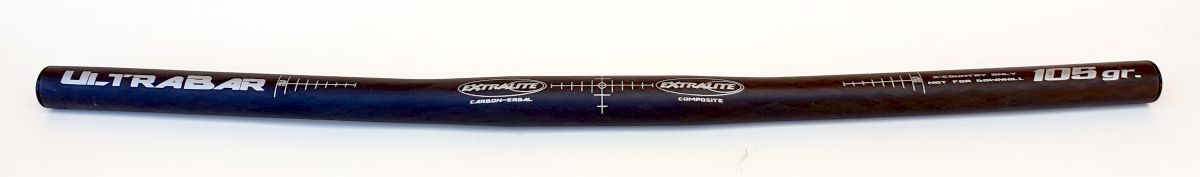

UltraBar 2 From 89g

Light and impact resistant handlebar.



Bend: 4°+4°

Rise: 0mm

Width: up to 580mm

Weight: see table below

Bar end: compatible in plugged version

Stem clamp diameter: 25.4mm

Maximum rider weight: 100kg / 220lbs

Material: Carbon / Alloy composite

Finish: Natural carbon with graphics

Download user manual

Weight by length:	520mm	540mm	560mm	580mm
UltraBar 2 shortable*	89 g.	92 g	95 g	98 g
UltraBar 2 BEC * * (with alloy reinforcements)	97g	100g	103g	106g
UltraBar BEC * * "classic"	-	-	102g	105g

* Shorter lengths are available upon request
** BEC= Bar-Ends-Compatible

Available in version 2 and "classic" graphics.

This handlebar is the results of a smart composite technology: carbon fibers are directly woven in a tubular pattern with no junctions and are then molded at very high pressure onto a high-grade butted alloy tube. By contrast, conventionally-wrapped handlebars are made with joined sheets of carbon fiber fabric and are then molded at only rather moderate pressure.

Useful graphics enable fast and precise lever and shifter positioning.

Benefits from a more efficient fiber orientation are a much more constant wall thickness, and a drastic reduction of weight and critical areas.

BEC version includes alloy reinforcements to support the bar ends clamping forces.

Hundreds thousands of fatigue test cycles, exceeds EN safety standard requirements!

UltraBar 2 exceed EN standard fatigue and static test requirements.



Warning:

UltraBar 2 should be only used in combination with a stem that features well rounded edges at the bar clamp (bar clamp diameter: 25.4mm), such as our Extralite UltraStem UL3.
